API
- chessplotlib.plot_board(ax: matplotlib.axes._axes.Axes, board: chess.Board, checkers: bool = True)[source]
Creates a board image on the specified axis.
- Parameters
- ax: plt.Axes
Axes to apply the board to.
- board: chess.Board
Board object to plot.
- checkers: bool, default=True
Whether or not to apply a checker pattern to the background.
Examples
>>> import chess >>> from chessplotlib import plot_board >>> import matplotlib.pyplot as plt >>> board = chess.Board() >>> ax = plt.gca() >>> plot_board(ax, board) >>> plt.show()
- chessplotlib.plot_move(ax: matplotlib.axes._axes.Axes, board: chess.Board, move: chess.Move, alpha: float = 1.0, color: str = 'red', piece_alpha: float = 1.0, piece_color: str = 'black')[source]
Visualizes a move on top of a plotted board.
- Parameters
- ax: plt.Axes
Axes containing the state of the board in which the move with take place
- move: chess.Move
Potential move represented with a chess.Move object
- alpha: float, default=1.0
Alpha value for move visual
- color: str, default=black
Color for move visual
Examples
>>> import chess >>> from chessplotlib import plot_board, plot_move >>> import matplotlib.pyplot as plt >>> board = chess.Board() >>> ax = plt.gca() >>> plot_board(ax, board) >>> plot_move(ax, board, "e2e4") >>> plt.show()

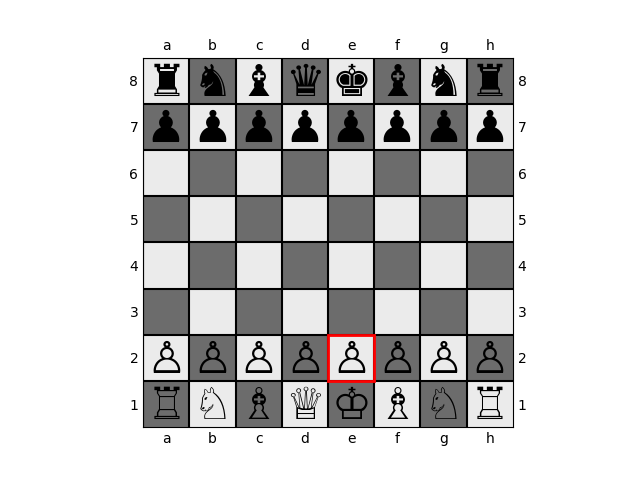

- chessplotlib.mark_square(ax: matplotlib.axes._axes.Axes, square: str)[source]
Highlights a square in red.
- Parameters
- ax: plt.Axes
Axes containing the state of the board
- square: str
String name for square, (i.e. e1)
Examples
>>> import chess >>> from chessplotlib import plot_board, mark_square >>> import matplotlib.pyplot as plt >>> board = chess.Board() >>> ax = plt.gca() >>> plot_board(ax, board) >>> mark_square(ax, "e2") >>> plt.show()
